We at, Schematic Systems Private Limited are engaged in manufacturing and exporting an ample range of Storage & Handling Systems. We use sophisticated technology and machinery to manage the timely production and verify the quality of the products. The products we manufacture are in compliance with international quality standards. Our ranges are competitively advantageous due to its durability, reliability and user-friendliness. We ensure prompt delivery of our products at an economical price. All the products listed under this category are as follows, Slotted Angle Shelving (Multi-flex), Mobile Easy Glide Storage System, Multi Range Pallet Racking, Steel Pallets, Multi Range Pallet Racking-1, Drive In Racking-3, Multi-tier Racking, Cantilever Racking, Mezzanine Racking, Gravity Type Racking, Rack Mounted Mezzanine Floor, Work Table (Yazaki System), Multiple Lane Flow Racks (Yazaki System).

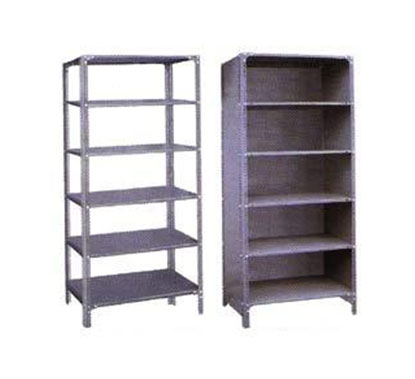

Slotted Angle Shelving (Multiflex)

With wide and rich industrial experience, we offer Slotted Angle Shelving (Multi-flex) across the world. We manufacture these panels using precision based techniques and superior quality steel to ensure durability. These panels are remarkably featured with a specially designed slotted angle racks, which are flexible in nature and can be adjusted in any form at an ease. It finds its application in places like offices, factories and godowns. Moreover, these racks are cost-worthy and capable of loading capacity ranges from 30kgs to 500kgs.

Features :

  • Comprises of 4 vertical slotted angle and shelves affixed with Nuts & Bolts.
  • Used for storage purpose in offices, factories, godowns etc.
  • Shelves can be easily adjusted according to the means of storage.
  • Available in all required sizes.
  • Can bear the U.D.L. load capacity ranging from 30Kgs. To 500Kgs per loading level.

Mobile Easy Glide Storage System

We hold the expertise in manufacturing and exporting a wide range of Mobile Easy Glide Storage System. We monitor the quality control process with utmost care to deliver defect-free products to our clients spread all over the world. These storage systems are capable of saving 60% of floor space, which offers 100 % of shelving facilities. It is applied in industries, where the system glides on steel track and consists of mobile base units onto, which different shelving options can be assembled. We offer it at industry leading prices.

Applicable For :

  • Banks & Financial Institutions.
  • Hospitals Records.
  • Office Records & Files.
  • Library Pharmaceuticals
  • Engineering
  • Pharmaceuticals
  • Chemical
  • Automobiles

Advantage :

  • High Density Storage.
  • Save floor space
  • Easy access to any material with flexible control.
  • Single locking system for duet free and secured storage.
  • Suitable for low height buildings with large inventory.
  • Saving at least 60% of storage space and multiplying retrieval efficiency.

Multi Range Pallet Racking

We are way forward in manufacturing and exporting an assortment of Multi Range Pallet Racking around the world. These are manufactured using supreme quality raw materials procured from reputed vendors. It is provided with extreme Stability and Safety. It ensures convenience and high rate of performance, which is Suitable for any size and height of pallet. These pallet racking are very durable, reliable and affordable.

Features :

  • Picking of load is excellent with all individual loads accessible.
  • Stability & Safety is very good.
  • Utilize about 30 - 50% of floor space.
  • All types of conventional fork lift trucks can be used.
  • Suitable for any size and height of pallet.

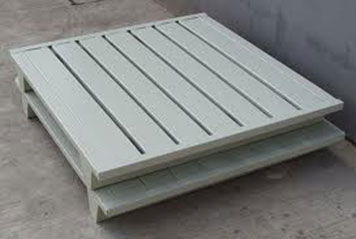

Steel Pallets

With innovative and focused approach, we manufacture and export a wide range of Steel Pallets around the globe. In attention to maintain the quality of the products, we have installed high- tech machineries and equipments for the process of manufacturing these pallets. These pallets are impeccable and advanced, as they are highly durable and reliable. It is widely used due to its reduced maintenance. The premium quality of these steel pallets meets up with international standards, which are available in the market at reasonable price range.

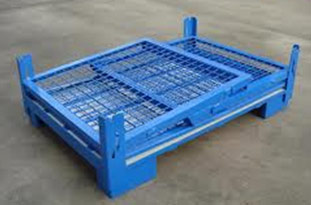

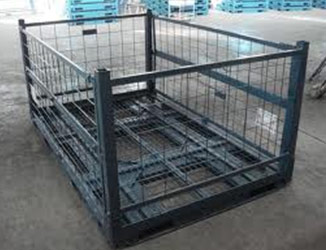

Other : Pallets, Caged Pallets, Caged Pallet with Pallet support

Multi Range Pallet Racking-1

We hold the expertise in the manufacturing and exporting of Multi Range Pallet Racking-1 with several precision-specifications as requested by our clients. We use superior quality stainless steel acquired from well-known vendors the vital features are well assembled, interlocked structure, easy to install and handle. It provides direct access to all pallets for 100% accessibility and good stock rotation. It is popularly preferred for Heavy duty capacity, loading up to approximate 4500kgs per compartment. We offer it at a cut-rate.

Features :

  • Assembled and interlocked structure
  • Easy to handle, Fast to install
  • Convince to adjust the layer height by pitch in 75mm per each
  • Heavy duty capacity, Loading up to approximate 4500kgs per compartment

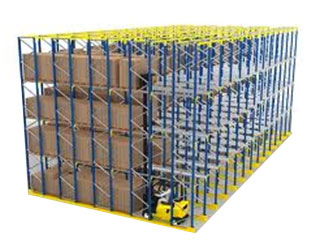

Drive In Racking-3

Heavy-Duty Drive-In Pallet Racks for High-Density Storage :

With extensive industry knowledge and integrated approach in manufacturing and exporting, we offer Drive in Racking-3. We use high-grade raw materials in the process of manufacturing the racking. These racks are easy to install and reliable as it requires less maintenance. These racks can be operated by the principle First In First Out or First In Last Out. It is available with us at a cost-effective price range, which is used widely in many commercial industries.



Others : Drive in Racking

Features :

  • Another kind of sectional and assembled type of goods racking, forklift will be used to store
    or withdraw goods in large quantity but few kinds;
  • Over 85% of storehouse will be utilized;
  • Loading capacity will be 800~2000kgs per layer;
  • Storage will be " First In-First Out"(FIFO) or "First In-Last Out"(FILO)

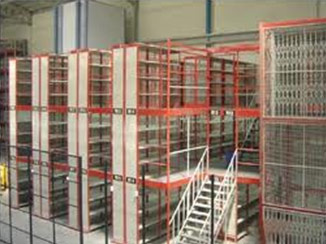

Multi-tier Racking

With the customer focused approach and rich industrial experience, we offer a wide range of Multi-tier Racking, an industry leading product. We scrutinize the quality control process with utmost care to deliver faultless products to our clients spread all over the world. It is precision-designed, to give it a prolonged life duration and machine-engineered to make it dimensionally perfect. It finds its application in industries such as, warehouses, godowns and stock points. We encourage customized designs from valued clients.

Features :

  • 2 or 3 levels will be constructed based on the poles of columns or shelvings for
    supporting of the floor;
  • Suitable for the high warehouse to store light & Small goods with great quality;
  • It will utilize the height space of the whole warehouse adequately;
  • The max loading capacity per square meters will be 1000kgs at most.

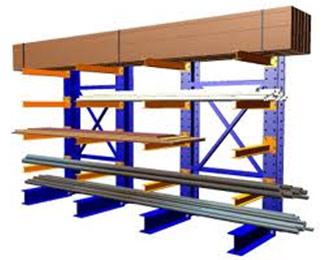

Cantilever Racking

Under able guidance of trained professionals, we offer an ample assortment of Cantilever Racking. We manufacture these flawless racks using finest quality raw materials purchased from leading vendors around the globe. These racks are immaculate, durable and reliable. Our cantilever racking is specially designed to store long items or items of varying length, such as metal beams, pipes, molding, wooden planks, pipes, and metal and plastic sheets among other materials. We ensure prompt delivery of our products.

Features :

  • Allows extra long items to be stored
  • Allows circinal items to be stored
  • Goods enter or withdraw can be approached both by hand or forklift
  • The loading capacity is 50~100kgs per JIB

Mezzanine Racking

We are experts in manufacturing and exporting Mezzanine Racking across the world. These are manufactured using best quality raw materials to ensure its durability. These racks are the most cost effective way to gain space and Suitable for the high warehouse to store light & small goods of great quality. It utilizes the height space of the whole warehouse adequately. Moreover, it is long-lasting, trustworthy and affordable.

Features :

  • 2 or 3 levels will be constructed based on the poles of columns or shelvings for
    supporting of the floor;
  • Suitable for the high warehouse to store light & Small goods with great quality;
  • It will utilize the height space of the whole warehouse adequately;
  • The max loading capacity per square meters will be 1000kgs at most.

Gravity Type Racking

We offer a wide range of Gravity Type Racking, which we manufacture and export across the world. This product is manufactured using various first-grade raw materials. This type racking is composed of upright frame group, bearing girder, roller and damping roller, and buffer separators. Our product has a higher demand around the globe for its exceptional designs, systematic pattern and price competency.

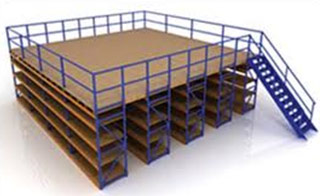

Rack Mounted Mezzanine Floor

We hold the expertise in manufacturing and exporting an assortment of Rack Mounted Mezzanine Floor. With the extended support of our in-house quality monitoring team, we ensure to deliver fault-free plants. These mezzanines are reliable and proven safe in usage and operation. It is exceptionally featured with easy to use and durable. It is used widely in industrial storage rooms and godowns. We offer it at a reasonable price.

Others : column based Mezzanine floor

Work Table

With wide distribution network and ethical business practices, we offer Work Table (Yazaki System) at a moderate price. We use superior quality raw materials in the process of manufacturing. These tables are available with us in various shapes, designs, dimensions & other specifications. It is used for washing the utensils at houses, hotels and restaurants. This table has a wider appreciation from clients for its matchless and defect free quality.

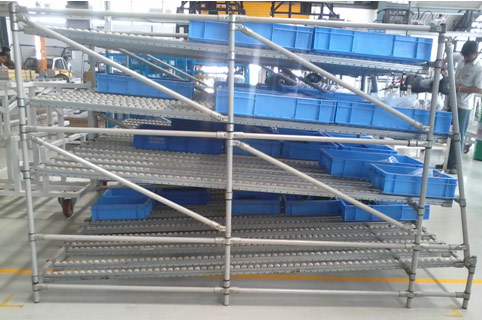

Multiple Lane Flow Racks (Yazaki System)

With extensive industry knowledge and integrated approach in manufacturing and exporting, we offer Multiple Lane Flow Racks (Yazaki System). We use finest raw materials to construct these racks to be defect-free. It is highly durable reliable and cost-effective. Their space saving feature and efficient functionality make these apt for various warehouses. We strive and thrive to keep our clients satisfied by offering zero-defect plants.

Mutiple lane flow racks
