Our organization is involved in manufacturing and exporting Shelving Solution all over the world. We manufacture these products using high grade raw materials. These products are well known for its durability, reliability and capable to keep things. We offer this long lasting product at an affordable price. All the products listed under this category are Heavy Duty Shelving, Longspan Shelving (X Span), Library Shelving and Column Based Mezzanine Floors.

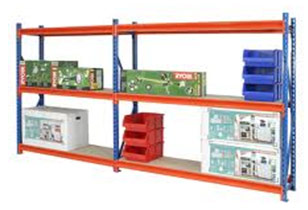

Heavy Duty Shelving

Our expert allows us to manufacture and export an ample range of Heavy Duty Shelving. We use sophisticated technologies and machines for the process of manufacturing. The salient feature of this system is it can be integrated with suitable material handling equipment for carrying material to various tiers and accessory components. It is mostly preferred by large scale industries. This product is available with us at a diminutive price.

Size :

  • Span, Depth, Heights, Design to customer requirement.

Salient features of heavy duty shelving:

  • Loading levels can be provided at a pitch of 50 mm there by levels can be customised
    based on height of the sku being stored
  • System can be integrated with suitable material handling equipment for carrying material
    to various tiers and accessory components
  • Chutes: inclined plane having guided passage where materials can be moved uni-directionally
    under gravity.
  • Conveyors to move material in horizontal planes
  • Multi-tier systems
  • Fully fabricated staircases are provided for stability
  • Wide range of accessories available

Decking surfaces :

  • Wire mesh
  • Steel decking

Longspan Shelving (X Span)

We hold the expertise in manufacturing and exporting Longspan Shelving (X Span) at a large scale. Our range is manufactured using quality materials available in the market. Our salient features are the Loading levels can be provided at a pitch of 50 mm there by levels can be customized based on height of the sky being stored. It is mostly used in large scale industries.

Size :

  • Span Depth and heigt: designed to customer requirement.
  • Salient features of longspan shelving (x span):

Loading levels can be provided at a pitch of 50 mm there by levels can be customised based on
height of the sku being stored.

unique design makes it possible to offer decking level with the following options:

  • Steel decking
  • Mesh decking
  • Each loading level can be divided into compartments depending on customers need.
  • Height of compartments offered
  • Depth of compartments offered
  • Light duty system can be offered for varying heights as under:
  • Single tier
  • Two tier
  • Three tier
  • Walkways can be provided depending on the load requirements and can be offered with
    the following options.
  • Steel panels
  • Perforated panels
  • Grating
  • System can be integrated with suitable material handling equipment for carrying material to
    various tiers and accessory components:
  • Chutes: inclined plane having guided passage where materials can be moved
    uni-directionally under gravity.
  • Conveyors to move material in horizontal planes.
  • Special designs for sub-zero temperature (cold room applications) are also possible.

Library Shelving

Schematic Systems Private Limited is one of the leading names in the field of manufacturing and exporting Library Shelving across the world. It is made of quality materials that are in compliance with international quality standards. The design is such that the books stored can be clearly seen and easily accessed and the modular concept utilizes flexibility in layout as well as future expansion of the system without facility. It is mostly preferred in public libraries, educational institutions, schools, colleges, research institutions, universities and clubs.

Accessories

  • Available accessories for our Library Shelving include:
  • Adjustable book stopper/holder
  • CD Shelves/holders
  • Perforated panels
  • Bay indicator
  • Range indicator

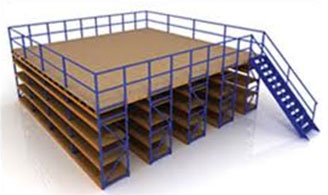

Column Based Mezzanine Floors

Our organization is involved in manufacturing and exporting an ample range of Column Based Mezzanine Floors. These products are made of quality raw materials and steels. The significant features are it is configured to suit the layout of the room, taking into account pillar positions, door positions and the solution can also be designed for varying load capacities. It can be used as an Office space, Storage or work area and Supervision area.

Features :

  • Space utilization - mezzanine floor helps you effectively utilize the height of the
    building, to meet your needs of increased space
  • Ease of assembly - being a bolted structure, the system offers excellent interchangeability
    in tens of relocating it in future. Also it saves the hassle of obtaining legal permission from
    various municipal authorities unlike civil structure
  • Modularity & upgradeability - the modular construction enables easy expansion in future,
    by just adding on additional beams and columns, without the need for any welding at site
  • Aesthetics - all the components are powder coated which make the system aesthetically
    appealing. Also pre-fabricated staircase and tubular railing
    suits the decor of the work/office area
  • System can be integrated with suitable material handling equipment for carrying material to
    various tiers and accessory components
  • Chutes: inclined plane having guided passage where materials can be moved uni-directionally
    under gravity.
  • Conveyors to move material in horizontal planes.

Applications :

Loading levels can be provided at a pitch of 50 mm there by levels can be customised based
on heightof the sku being stored.

  • Office space
  • Storage or work area
  • Supervision area etc.
